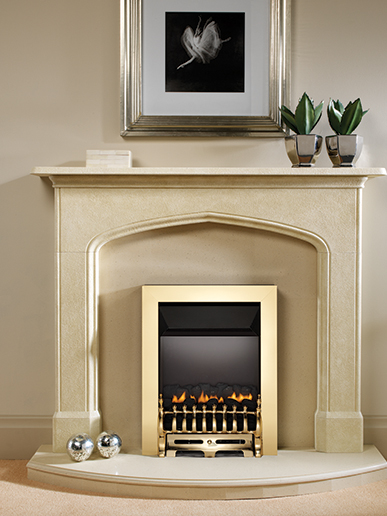

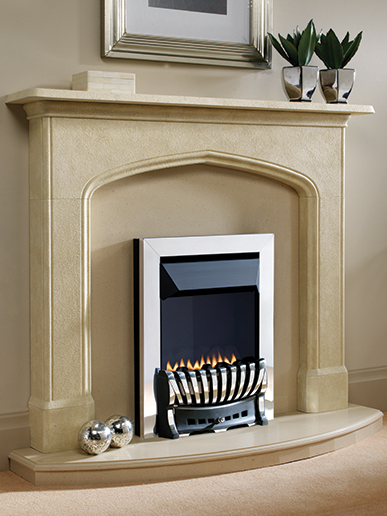

The classic appeal of a traditionally styled fire with innovative function; a combination of benefits from modern catalytic technology.

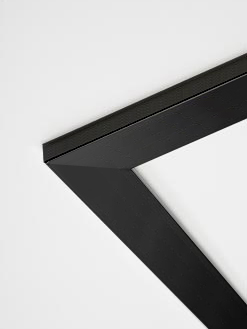

NB: Available with Brass, Chrome and Black classic plain frames only.
The eko 5510 features all the benefits of the inset flueless engine; 100% (Direct) energy efficient, reduced running costs, simple installation, realistic coal fuelbed and a clean burning ribbon burner. Choose from a range of selected frets and one-piece Classic Plain frames to personalise your fire.
The eko 5510 does not require a chimney or flue therefore all the heat generated is distributed into the room and none is lost up the chimney. This clever technology not only saves money on installation but significantly reduces the running cost. A 43mm spacer frame is fitted as standard to suit a 100mm/4" rebated surround. Should you require this fire to be installed in a 75mm/3" rebated surround you will require a 75mm spacer (Not included). For a flat wall fix a 155mm spacer is required (Not included).
The only considerations when installing this appliance are a minimum room size of 27m3, an accessible gas supply and adequate ventilation.
This product is not suitable as a primary heating purposes.
|Minimum Room Size||27m3|
|Fire Type||Flueless Inset Pi27G|
|Control Type||Manual Rotary|

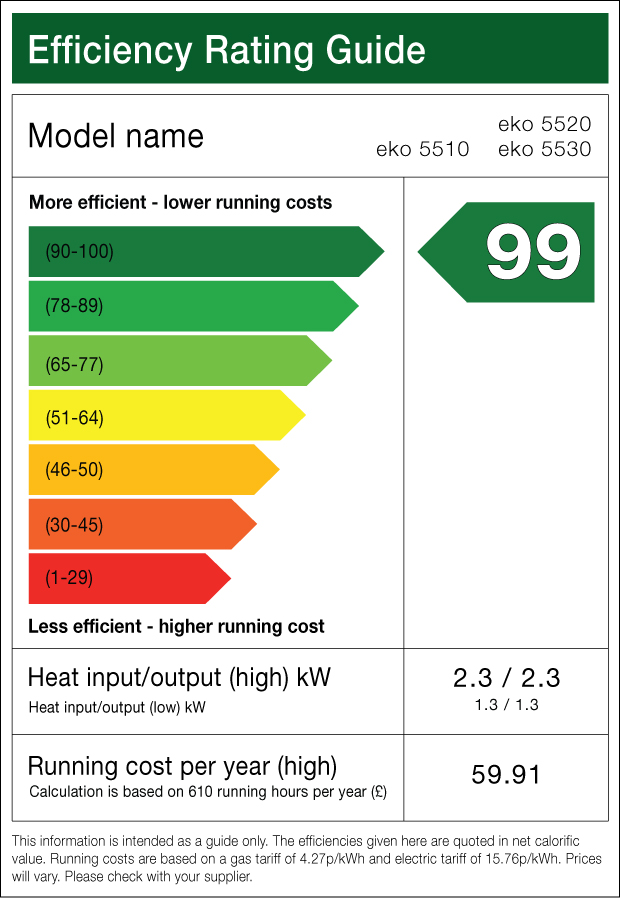

|Heat Input (Max/Min) Gross||2.3kw / 1.3KW|
|Heat Output (Max/Min) Gross||2.3KW / 1.3KW|
|Running Costs Per Hour (Max/Min)*||9.82p / 5.55p|
|Outline Dimensions**||W555 X H605 X D205 (mm)|
|Installation||Inset - Fireplace|
|Air Vent Required||100cm2|
|Safety||Oxygen Depletion Sensor|
Flame Failure Device
|Options||Coal fuelbed only|
Choice of Frets and
Frames (classic plain only)
* Price based on 4.27p/kWh. Gas prices may vary. Please check with your supplier.
** Please refer to Technical specification for more product information.
